| Nama Produk: | Saklar Cisco Ethernet | Nomor bagian: | C9300-24T-E |
|---|---|---|---|
| Waktu Pimpin: | 1~3 Hari | Pengiriman: | DHL/FEDEX |
| Pembayaran: | TT/Paypal | Kondisi: | Baru |
| Jaminan: | 1 Tahun | Kata-kata kunci: | C9300-24T-E |

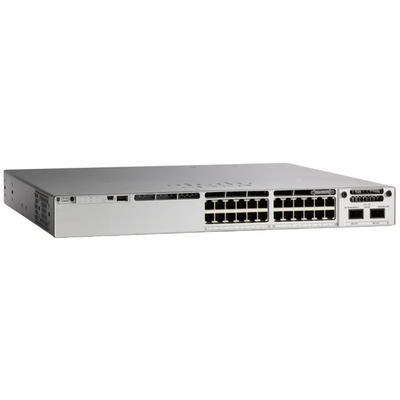

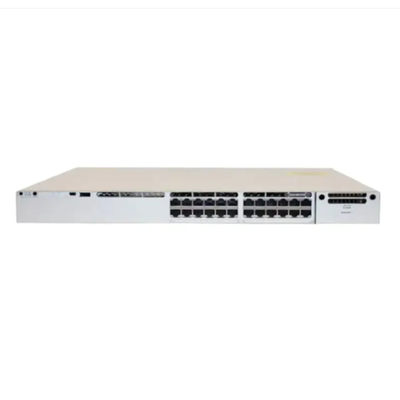

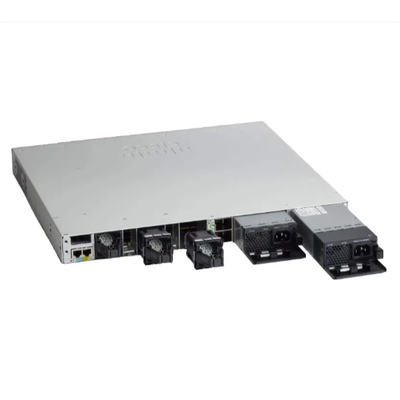

The Cisco C9300-24T-E is a next-generation enterprise-class access switch from the Cisco Catalyst 9300 Series. Designed for modern campus and branch networks, it provides 24 Gigabit Ethernet data ports, advanced security capabilities, high-performance Layer 3 routing, and Cisco StackWise-480 technology for scalable network expansion.
Built on Cisco IOS XE architecture, the C9300-24T-E supports Software-Defined Access (SD-Access), network automation, IoT deployments, and cloud-managed infrastructures. With up to 480 Gbps stacking bandwidth and 208 Gbps switching capacity, it delivers exceptional reliability and performance for medium and large enterprises.
| Specification | Details |
|---|---|
| Model | C9300-24T-E |
| Product Series | Cisco Catalyst 9300 |
| Ports | 24 × 10/100/1000 Gigabit Ethernet |
| License | Network Essentials |
| Switching Capacity | 208 Gbps |
| Forwarding Rate | 154.76 Mpps |
| Stacking Technology | Cisco StackWise-480 |
| Stacking Bandwidth | Up to 480 Gbps |
| DRAM | 8 GB |
| Flash Memory | 16 GB |
| VLAN IDs | Up to 4000 |
| Operating System | Cisco IOS XE |
| Uplink Support | Modular Network Modules |
| Form Factor | 1RU Rack Mount |
| Power Supply | 350W AC Power Supply |
Provides reliable wired connectivity for desktops, servers, printers, wireless access points, and other network devices, making it ideal for enterprise access layer deployments.
With up to 208 Gbps switching capacity and 154.76 Mpps forwarding performance, the switch handles bandwidth-intensive applications with ease while maintaining low latency.
Stack multiple Catalyst 9300 switches into a single logical unit with up to 480 Gbps stacking bandwidth, simplifying management and improving network resilience.
The Cisco C9300-24T-E includes enterprise-grade security features such as:
Built on a modern, programmable operating system that supports:
Supports large enterprise deployments with extensive Layer 2 and Layer 3 capabilities, ensuring long-term network growth and flexibility.
Designed for mission-critical environments with redundant capabilities and enterprise-class hardware reliability.
Automation and centralized management tools help reduce operational complexity and improve efficiency.
Integrated security technologies protect users, devices, applications, and data across the network.
Modular uplink architecture allows organizations to adapt their network infrastructure as bandwidth requirements increase.
As part of the Cisco Catalyst 9300 family, the switch supports future software enhancements and evolving networking technologies.
| Item | Specification |
|---|---|
| Ethernet Ports | 24 x 10/100/1000 RJ-45 |
| Switching Capacity | 208 Gbps |
| Forwarding Bandwidth | 154.76 Mpps |
| Stack Bandwidth | 480 Gbps |
| Maximum VLANs | 4000 |
| IPv4 Routing Entries | 32,000 |
| IPv6 Routing Entries | 16,000 |
| MAC Address Table | 32,000 |
| Operating System | Cisco IOS XE |
| Management Interface | Console, USB, Ethernet |
| Rack Height | 1RU |
| Power Supply | 350W AC |
| Feature | C9300-24T-E | C9200-24T-E |
|---|---|---|
| Enterprise Performance | Advanced | Standard |
| Switching Capacity | Higher | Moderate |
| Stack Bandwidth | 480 Gbps | 160 Gbps |
| SD-Access Support | Full Support | Limited Support |
| Scalability | Enterprise-Level | Mid-Size Networks |
| Recommended Deployment | Large Campus Networks | Small to Medium Businesses |
Choose the Cisco C9300-24T-E if your organization requires:
Choose the Cisco C9200-24T-E if your primary focus is cost-effective access switching for smaller deployments.
Provides reliable wired access for employees and mission-critical business applications.
Delivers secure and scalable connectivity for distributed enterprise locations.
Supports classrooms, laboratories, administration offices, and campus-wide connectivity.
Ensures secure and stable network access for medical devices, staff, and patient services.
Meets strict security and performance requirements for public sector deployments.
Yes. The C9300-24T-E supports advanced Layer 3 routing features through Cisco IOS XE and Network Essentials licensing.
Yes. It supports Cisco StackWise-480 technology with stacking bandwidth of up to 480 Gbps.
No. The C9300-24T-E is a data-only model and does not provide Power over Ethernet (PoE).
If PoE functionality is required, consider:
The switch supports Cisco Catalyst 9300 modular uplink options, including:
Absolutely. The Catalyst 9300 Series is Cisco’s flagship enterprise access switching platform and is widely deployed in campus and branch network environments worldwide.
Yes. Cisco IOS XE provides programmable APIs, telemetry, and automation capabilities to simplify network management and operations.
Our experienced networking specialists can assist with switch selection, compatible transceivers, uplink modules, stacking accessories, and deployment planning.
![]()
![]()
![]()
