1. Product Overview: The Gold Standard for Enterprise Access

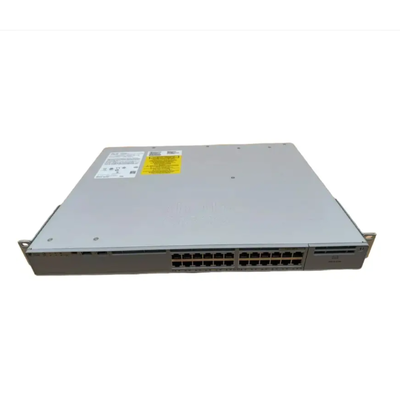

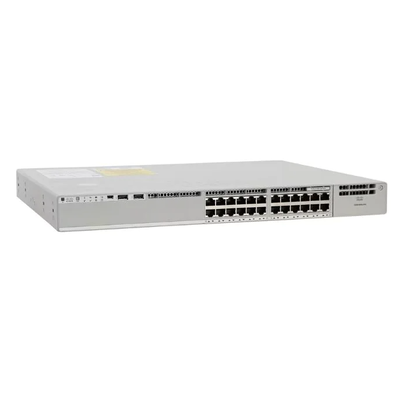

The Cisco C9200-24P-E is the definitive solution for enterprise-grade access layer connectivity, extending the power of intent-based networking to every branch and mid-market office. As a core component of the Catalyst 9200 family, this 24-port PoE+ switch offers a foundational building block for secure, resilient, and simplified network operations. Equipped with the Network Essentials software stack, it provides critical Layer 2 and basic Layer 3 features, ensuring high availability and robust security for modern, data-heavy business environments.
2. Technical Specifications & Performance
| Feature | Specification Details |
|---|
| Model Number | C9200-24P-E |
| Port Configuration | 24 Ports Full PoE+ (802.3at) |
| PoE Power Budget | 370W Default (Scalable with secondary PSU) |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 190.4 Mpps |
| Stacking Technology | StackWise-160 (Up to 160 Gbps bandwidth) |
| Software License | Network Essentials (Perpetual) |
| Uplink Options | Modular (Supports 1G, 10G, and 25G modules) |
3. Key Advantages: Why Invest in the C9200-24P-E?
High-Density PoE+ Support: Delivering up to 30W of power per port, the C9200-24P-E seamlessly supports Wi-Fi 6 access points, high-definition IP cameras, and VoIP phones without the need for additional power cabling.
Uncompromised Resiliency: Unlike lower-tier switches, this model supports Field Replaceable Units (FRU), including redundant power supplies and fans, ensuring your network remains operational even during hardware maintenance.
Advanced Security Architecture: Features AES-128 MACsec encryption, policy-based segmentation, and Cisco’s Trustworthy Systems to protect your infrastructure from the edge to the cloud.
Operational Simplicity: Fully integrated with Cisco DNA Center for automated provisioning and simplified management, significantly reducing operational expenses (OpEx).
4. FAQ: Product Comparison & After-Sales Support
Q1: What is the main difference between C9200-24P-E and C9200L-24P-4G?
The C9200-24P-E is a fully modular switch, meaning it supports field-replaceable fans, power supplies, and modular uplinks. The C9200L (Fixed) models have fixed internal components. The C9200 is superior for mission-critical deployments where hardware longevity and uptime are top priorities.
Q2: Does the C9200-24P-E support stacking for increased density?
Yes. This model supports Cisco StackWise-160 technology. You can stack up to 8 switches in a single logical unit, providing 160 Gbps of stacking bandwidth and simplified "single-pane-of-glass" management.
Q3: What features are included in the "Network Essentials" license?
The Network Essentials license covers all foundational networking needs: Layer 2 features, static routing, OSPF, basic Cisco DNA Center capabilities, and basic SD-Access (Software-Defined Access) functionality.
Q4: Can I upgrade the 370W PoE budget?
Yes. While the default configuration provides 370W, you can add or upgrade to a higher-wattage power supply unit (PSU) to increase the total PoE budget, ensuring all 24 ports can run high-draw devices simultaneously.
Q5: What is your warranty policy for Cisco hardware?
We provide a comprehensive 1-year warranty on all original Cisco C9200-24P-E units. Our technical team also offers pre-sale compatibility checks and post-sale basic configuration support to ensure a smooth deployment.
Q6: Is this switch compatible with 10G and 25G uplinks?
Absolutely. The C9200-24P-E features modular uplink slots. You can purchase specific modules for 4 x 1G, 4 x 10G, or 2 x 25G SFP+ connections, allowing your network backbone to scale as your data demands grow.
5. Conclusion
The Cisco C9200-24P-E Catalyst 9200 is more than just a switch; it is a scalable platform designed to secure and simplify your business connectivity. With its modular design and robust PoE+ capabilities, it offers the best ROI for modern campus networks.
