Huawei S6330-H48X6C-A 48×10GE 6×100GE Aggregation Switch

Gambar besar : Huawei S6330-H48X6C-A 48×10GE 6×100GE Aggregation Switch

Detail produk:

Tempat asal:	Cina
Nama merek:	Huawei
Sertifikasi:	CE
Nomor model:	S6330-H48X6C-A

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1
Waktu pengiriman:	2-3 hari
Syarat-syarat pembayaran:	T/T

Kontak

Huawei S6330-H48X6C-A 48×10GE 6×100GE Aggregation Switch

Deskripsi

Nama Produk:	Sakelar Jaringan Huawei	Nomor Bagian:	S6330-H48X6C-A
Pembayaran:	TT/Paypal	Pengiriman:	DHL
Kondisi:	Baru	Waktu Pimpin:	2-3 hari
Jaminan:	1 Tahun	Kata kunci:	S6330-H48X6C-A

Huawei S6330-H48X6C-A Overview

The Huawei CloudEngine S6330-H48X6C-A is a next-generation, high-performance 10GE aggregation switch designed for enterprise campus and data center networks. It provides 48 fixed 10GE SFP+ ports for high-density downlink connections and 6 high-speed 100GE QSFP28 ports for scalable uplinks, ensuring non-blocking performance with a 25.6 Tbps switching capacity and 2000 Mpps forwarding rate.

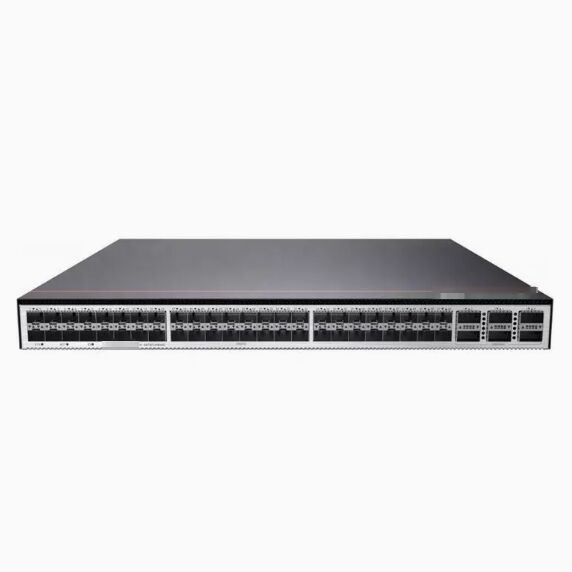

Figure 1 shows the front panel of S6330-H48X6C-A.

Quick Specs

Item	Specification
Model	Huawei CloudEngine S6330-H48X6C-A
Fixed Ports	48 × 10GE SFP+; 6 × 40/100GE QSFP28
Switching Capacity	4.8 Tbps / 25.6 Tbps
Packet Forwarding	2000 Mpps
Power Supply	Dual modular, hot-swappable, N+1 redundant
Fan	4 × pluggable, front-to-back airflow
Form Factor	1U 19-inch rack-mountable

Huawei S6330-H48X6C-A Specification

Parameter	Detail
Product Series	CloudEngine S6330-H Series
Port Configuration	48 × 10GE SFP+ ports 6 × 40/100GE QSFP28 uplink ports
Switching Capacity	4.8 Tbps (device), 25.6 Tbps (stacking)
Packet Forwarding Rate	2000 Mpps
Layer 3 Features	Static routing, RIP, OSPF, IS-IS, BGP, BGP4+, ECMP, VXLAN, EVPN
Layer 2 Features	4K VLANs, GVRP, MUX VLAN, VBST, LNP, VCMP
Security Features	802.1X, ACL, MACsec, CPU protection, storm control
High Availability	SVF, CSS, VRRP, BFD, ERPS, hot-swappable power/fans
Power Supply	Dual hot-swappable modules (AC/DC optional), N+1 redundancy
Operating Temperature	0°C to 45°C
Dimensions (W×D×H)	442 mm × 572 mm × 43.6 mm
Typical Applications	Enterprise campus aggregation, data center leaf switch, metro aggregation
