Detail produk:
|
Model: | JL727A | Ports: | 48x 10/100/1000BASE-T Class 4 PoE ports 4x 1/10G SFP ports |
---|---|---|---|
Memory and processor: | Quad Core ARM Cortex™ A72 @ 1.8 GHz | Hasil: | 130.9 Mpps |
JL727A specification Ports 48x 10/100/1000BASE-T Class 4 PoE ports 4x 1/10G SFP ports Memory and: | 176 Gbps | PoE capability: | 370W |
Kemampuan menumpuk: | 8 anggota | Power Consumption: | 76W at 230 VAC |
Product Dimensions: | 1.73 x 17.4 x 12.9 in | Condition: | Brand new |
Jaminan: | 1 tahun | ||
Menyoroti: | 370W Aruba 6200F Series Switch,4SFP+ Aruba 6200F Series Switch,JL727A Cisco Ethernet Switch |

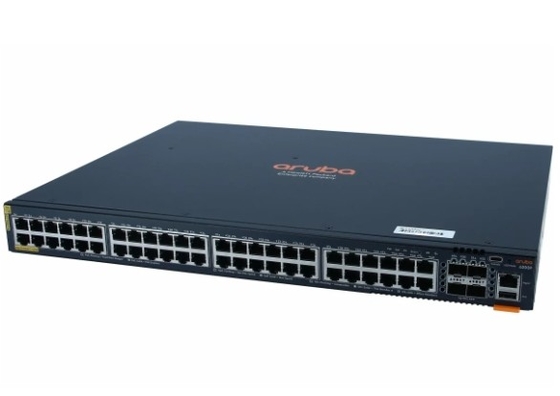

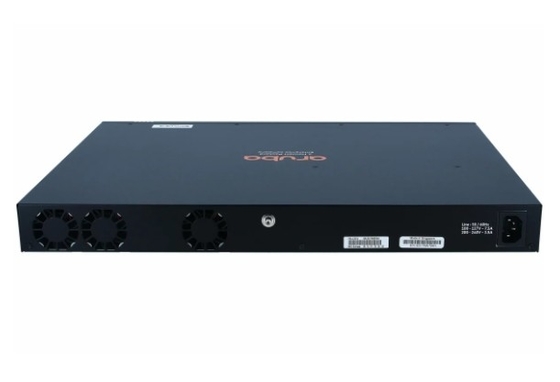

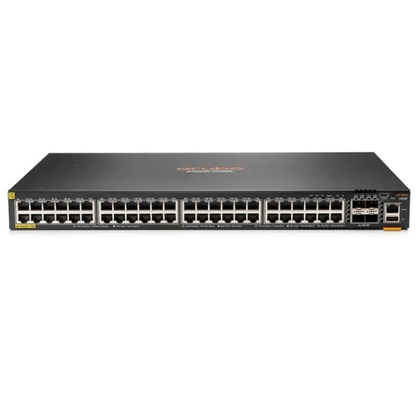

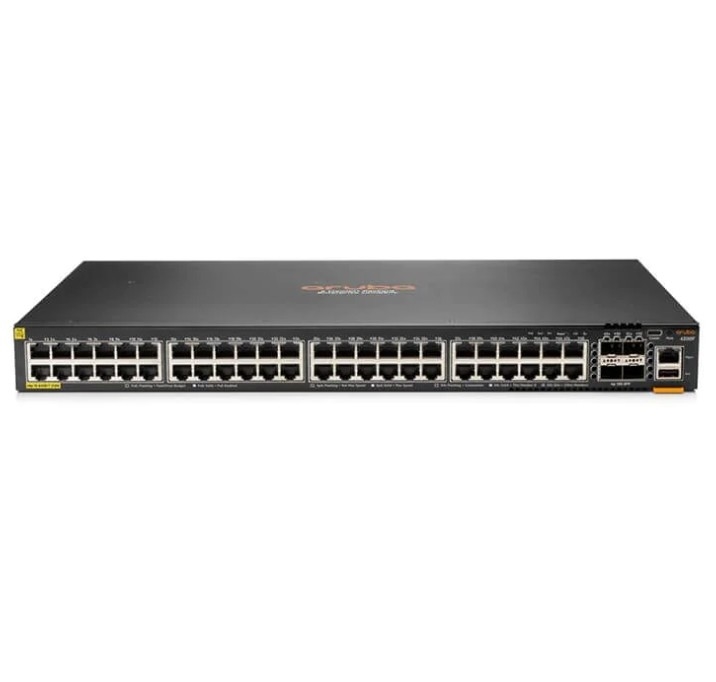

Aruba CX 6200 Switch Series adalah keluarga next-gen dari switch akses yang dapat ditumpuk yang ideal untuk kantor cabang perusahaan, kampus, dan jaringan UKM.
Tabel 1 menunjukkan Specs Cepat.
Kode produk |
|
Pelabuhan |
48x 10/100/1000BASE-T Kelas 4 PoE port 4x 1/10G SFP port |
Memori dan prosesor |
Quad Core ARM Cortex A72 @ 1,8 GHz |
Keterlibatan |
Hingga 130,9 Mpps |
Kapasitas routing/switching |
176 Gbps |
Tabel 2 menunjukkan perbandinganJL727A.
Modul |
||
Pelabuhan |
24x 10/100/1000BASE-T port 4x 1/10G SFP port |
48x 10/100/1000BASE-T Kelas 4 PoE port 4x 1/10G SFP port |
Memori dan prosesor |
Quad Core ARM Cortex A72 @ 1,8 GHz |
Quad Core ARM Cortex A72 @ 1,8 GHz |
Keterlibatan |
Hingga 95,2 Mpps |
Hingga 130,9 Mpps |
Spesifikasi JL727A |
|
Pelabuhan |
48x 10/100/1000BASE-T Kelas 4 PoE port 4x 1/10G SFP port |
Memori dan prosesor |
Quad Core ARM CortexTMA72 @ 1,8 GHz |
Latensi |
1 Gbps: 2,28 detik 10 Gbps: 1,46 detik |
Keterlibatan |
Hingga 130,9 Mpps |
Kapasitas routing/switching |
176 Gbps |
Kemampuan PoE |
370W |
Kemampuan menumpuk |
8 anggota |
Tegangan masukan |
100V-120V/200V-240V |
Konsumsi Daya |
76W pada 230 VAC |
Dimensi produk (imperial) |
1.73 x 17.4 x 12.9 inci |
