Detail produk:
|

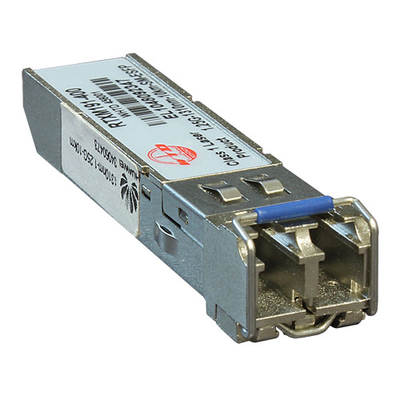

| Nama: | TR-ZC13T-N001000BASE-SX SFP modul transceiver MMF 850nm DOM | Model: | TR-ZC13L-N00 |
|---|---|---|---|
| kata kunci: | Pemancar Optik SFP | detail: | Modul Transceiver SFP |
| MOQ: | 1 PC | Kondisi: | Asli Baru |
| Pengangkutan: | TR-ZC13L-N00 | Pengemasan: | Kotak asli |
| Menyoroti: | 850nm SFP Transceiver Module,MMF SFP Transceiver Module,Modul Transceiver BASE-SX SFP |
||
TR-ZC13L-N00SFP dibuat untuk Multimode Fiber saja.
1000BASE-SX SFP, kompatibel dengan standar IEEE 802.3z 1000BASE-SX, beroperasi pada tautan serat multimode 50 μm lama hingga 550 m dan pada 62.Fiber Distributed Data Interface (FDDI) kelas 5 μm serat multimode hingga 220 m. Ini dapat mendukung hingga 1 km melalui kabel serat multimode 50 μm yang dioptimalkan laser. Panjang gelombang 850-nm, rentang suhu operasi yang diperpanjang dan dukungan DOM, konektor LC / PC ganda.
Spesifikasi SFP Port Cabling |
|||||
| Produk | Panjang gelombang (nm) | Jenis Serat | Ukuran inti (μm) | Lebar Band Modal (MHz* Km) *** | Jarak operasi (m) |
| 1000BASE-SX | 850 | MMF | 62.5 | 160 (FDDI-grade) | 220 (722 kaki) |
| 62.5 | 200 (OM1) | 275 (902 kaki) | |||
| 50 | 400 (400/400) | 500 (1,640 kaki) | |||
| 50 | 500 (OM2) | 550 (1.804 kaki) | |||
| 50 | 2000 (OM3) | 1000 (3281 kaki) | |||
| 1000BASE-LX/LH | 1310 | MMF* | 62.5 | 500 | 550 (1.804 kaki) |
| 50 | 400 | 550 (1.804 kaki) | |||
| 50 | 500 | 550 (1.804 kaki) | |||
| SMF | -** | - | 10,000 (32,821 kaki) | ||
| 1000BASE-EX | 1310 | SMF | -** | - | 40,000 (131,234 kaki) |
|
1000BASE-ZX (GLC-ZX-SMD) |
1550 | SMF | - | - | Sekitar 70 km tergantung pada kehilangan link |
| 1000BASE-BX-U | 1310 | SMF | -** | - | 10,000 (32,821 kaki) |
| 1000BASE-BX-D | 1490 | SMF | -** | - | 10,000 (32,821 kaki) |
Saham kami mendukung harga yang baik
| C1000-48P-4G-L | C9500-NM-8X | CAB-SPWR-30CM |
| C1000-48T-4G-L | C9800-F-X-K9 | C9200L-STACK-KIT |
| WS-C2960X-24TS-LL | N9K-C93180YC-FX | PWR-C4-950WAC-R |
| WS-C2960X-24PSQ-L | N3K-C3172PQ-XL | C9200-NM-4G |
| WS-C2960X-24PS-L | N2K-C2348UPQ | C9200-NM-4X |
| WS-C2960X-48TS-L | AIR-AP1832I-H-K9 | C9300-NM-4G |
| WS-C2960L-24PS-AP | AIR-AP2802I-H-K9 | C9300-NM-8X |
| WS-C2960L-16TS-LL | C9115AXI-H | GLC-LH-SMD |
| WS-C2960L-8TS-LL | C9120AXI-H | SFP-10G-SR |
| WS-C3560-48FS-S | AIR-AP1562I-H-K9 | SFP-10G-LR |
| WS-C2960X-24PS-L | AIR-AP1562D-H-K9 | SFP-10G-SR-S |
| C9200L-48P-4X-E | C9800-L-C-K9 | SFP-10G-LR-S |
| C9200L-48P-4G-E | C9800-L-F-K9 | GLC-TE |
| C9200L-24T-4G-E | AP505 | SFP-H10GB-CU2M |
| C9300-24T-A | AP515 | MA-CBL-40G-3M |
| C9300-48T-A | CP-3905 | GLC-LH-SMD= |
| C9300-24S-A | CP-7821-K9 | ISR4331/K9 |
| C9300-48S-A | CP-8832-MIC-WIRED | ISR4331/K9 RF |
| C9300-48P-E | CS-MIC-TABLE-J | FPR2110-ASA-K9 |
| C9300-24P-E | AIR-AP3802I-E-K9 | FPR2110-ASA-K9 |
| C9300L-24T-4G-E | C1111-8P | FPR2120-ASA-K9 |
| C9300L-48T-4G-E | PWR-C5-125WAC | FPR2130-ASA-K9 |
| C9300-NM-8X | PWR-C5-1KWAC | C9200-NM-4G= |
| C9400-LC-24S | PWR-C6-125WAC | C9200-NM-4G= |
| C9400-LC-48S | STACK-T1-50CM | C9200L-24P-4G-CE |
| C9500-24Y4C-A | STACK-T1-1M | C9200L-24P-4G-CE |
| C9500-48Y4C-A | STACK-T1-3M | C9200L-48P-4G-E |
