Detail produk:
|
| Model: | C9300L-48T-4G-A | IOS yang didukung: | Keunggulan Jaringan, Esensi Jaringan |
|---|---|---|---|
| Opsi modul jaringan: | Modul Tetap | Teknologi Tumpukan: | StackWise-320 |
| Menumpuk Bandwidth: | 320 Gbps | DRAM: | 8 GB |
| KILATAN: | 16 GB | Kapasitas Beralih: | 56 Gbps - 176 Gbps |
| Tarif Penerusan: | 41,66 Mpps - 130,95 Mpps | Kondisi: | Baru Disegel |
| Jaminan: | 1 tahun | ||
| Menyoroti: | 4X1G Cisco Catalyst 9300L Switch,Cisco Catalyst 9300L Switch,48port Cisco Catalyst 9300L Switch |
||

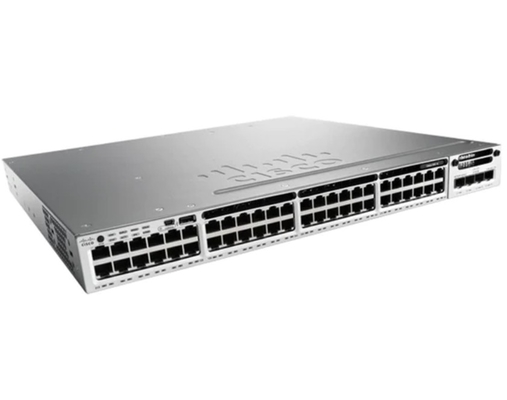

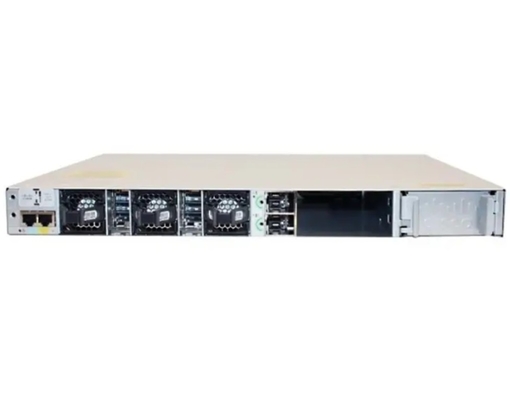

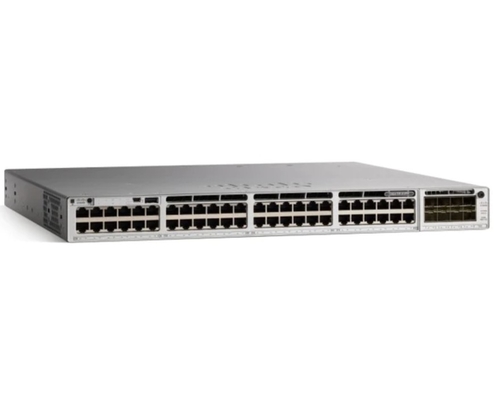

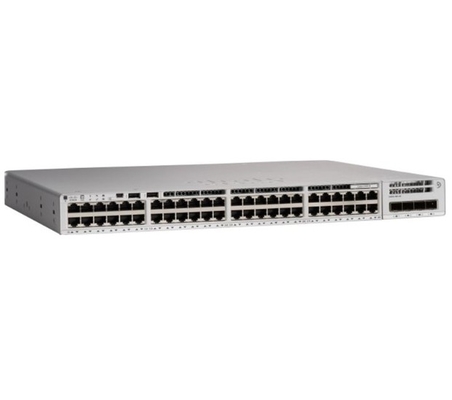

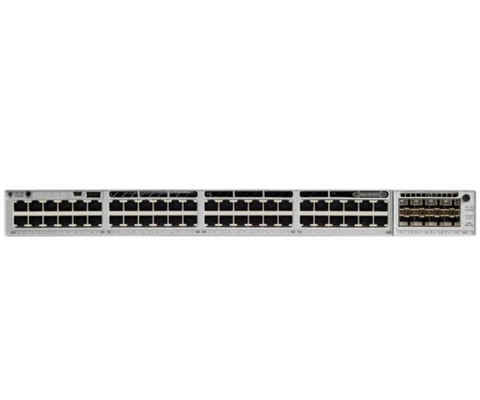

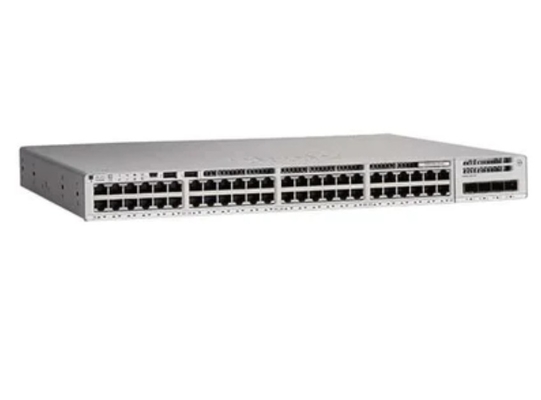

Cisco Catalyst 9300 Series adalah generasi berikutnya dari industri yang paling banyak digunakan stackable switching platform. dibangun untuk keamanan, IoT, dan cloud,switch jaringan ini membentuk dasar untuk Cisco ′s Software-Defined AccessCisco Catalyst 9300L switch adalah Catalyst 9300 switch dengan modul tetap.
![]()
![]()
Tabel 1 menunjukkan daftar model.
| SKU | Deskripsi |
| C9300L-24T-4G-E | Catalyst 9300 24-port uplinks tetap data saja, 4X1G uplinks, Network Essentials |
| C9300L-24T-4G-A | Catalyst 9300 24-port uplinks tetap data saja, 4X1G uplinks, Network Advantage |
| C9300L-24P-4G-E | Catalyst 9300 24-port fixed uplinks PoE+, 4X1G uplinks, Network Essentials |
| C9300L-24P-4G-A | Catalyst 9300 24-port fixed uplinks PoE+, 4X1G uplinks, Network Advantage |
| C9300L-48T-4G-E | Catalyst 9300 48-port uplinks tetap data saja, 4X1G uplinks, Network Essentials |
| C9300L-48T-4G-A | Catalyst 9300 48-port uplinks tetap data saja, 4X1G uplinks, Network Advantage |
| C9300L-48P-4G-E | Catalyst 9300 48-port fixed uplinks PoE+, 4X1G uplinks, Network Essentials |
| C9300L-48P-4G-A | Catalyst 9300 48-port fixed uplinks PoE+, 4X1G uplinks, Network Advantage |
| C9300L-48PF-4G-E | Catalyst 9300 48-port fixed uplinks Full PoE+, 4X1G uplinks, Network Essentials |
| C9300L-48PF-4G-A | Catalyst 9300 48-port fixed uplinks Full PoE+, 4X1G uplinks, Network Advantage |
| C9300L-24T-4X-E | Catalyst 9300 24-port fixed uplinks data saja, 4X10G uplinks, Network Essentials |
| C9300L-24T-4X-A | Catalyst 9300 24-port uplinks tetap data saja, 4X10G uplinks, Network Advantage |
| C9300L-24P-4X-E | Catalyst 9300 24-port fixed uplinks PoE+, 4X10G uplinks, Network Essentials |
| C9300L-24P-4X-A | Catalyst 9300 24-port fixed uplinks PoE+, 4X10G uplinks, Network Advantage |
| C9300L-48T-4X-E | Catalyst 9300 48-port uplinks tetap data saja, 4X10G uplinks, Network Essentials |
| C9300L-48T-4X-A | Catalyst 9300 48-port uplinks tetap data saja, 4X10G uplinks, Network Advantage |
| C9300L-48P-4X-E | Catalyst 9300 48-port fixed uplinks PoE+, 4X10G uplinks, Network Essentials |
| C9300L-48P-4X-A | Catalyst 9300 48-port fixed uplinks PoE+, 4X10G uplinks, Network Advantage |
| C9300L-48PF-4X-E | Catalyst 9300 48-port fixed uplinks Full PoE+, 4X10G uplinks, Network Essentials |
| C9300L-48PF-4X-A | Catalyst 9300 48-port fixed uplinks Full PoE+, 4X10G uplinks, Network Advantage |
Spesifikasi Switch Cisco Catalyst 9300L |
|
| Dirancang untuk menggantikan | Katalis 3850 |
| IOS yang didukung | Keuntungan Jaringan, Pentingnya Jaringan |
| Opsi modul jaringan | Modul Tetap |
| Teknologi tumpukan | StackWise-320 |
| Bandwidth tumpukan | 320 Gbps |
| Jumlah total alamat MAC | 32,000 |
| Jumlah total rute IPv4 (ARP ditambah rute yang dipelajari) | 32, 000 (24.000 rute langsung dan 8000 rute tidak langsung) |
| Entri routing IPv4 | - |
| Entri routing IPv6 | 16,000 |
| Skala routing multicast | 8,000 |
| Entri skala QoS | 5,120 |
| Entri skala ACL | 5,120 |
| Buffer paket per SKU | Buffer 16 MB untuk model Gigabit Ethernet 24 dan 48 port |
| Entri Fleksibel Netflow (FNF) | 64,000 aliran pada model Gigabit Ethernet 24 dan 48 port |
| DRAM | 8 GB |
| Flash | 16 GB |
| ID VLAN | 4094 |
| Total Virtual Interface (SVI) yang Di-Switched | 1000 |
| Bingkai jumbo | 9198 byte |
| Kapasitas switching | 56 Gbps - 176 Gbps |
| Tingkat pengiriman | 41.66 Mpps - 130.95 Mpps |
![]()
