Detail produk:
|

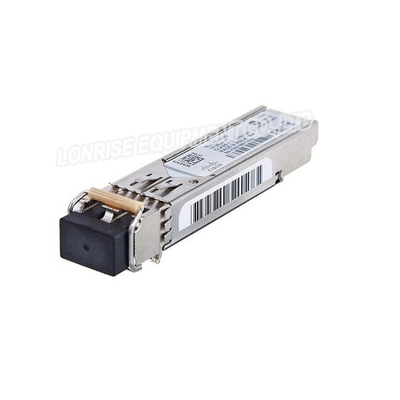

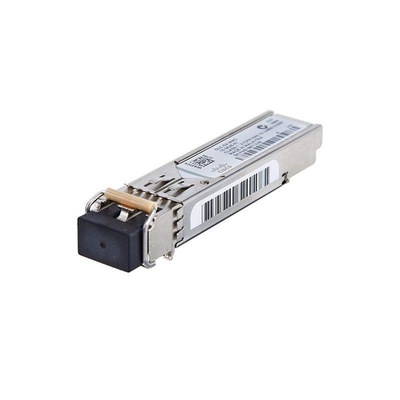

| Nama: | Modul transceiver Cisco GLC-SX-M MD 1000BASE-SX SFP MMF 850nm DOM | Model: | GLC-SX-M MD |
|---|---|---|---|
| kata kunci: | Pemancar Optik SFP | detail: | Modul Transceiver SFP |
| MOQ: | 1 PC | Kondisi: | Asli Baru |
| Pengangkutan: | Dhl Fedex Up | Pengemasan: | Kotak asli |
| Menyoroti: | Modul Transceiver MMFSFP,Transceiver Optik Cisco GLC-SX-MMD SFP,Modul Transceiver DOM SFP 850nm |
||
GLC-SX-M M D 1000BASE-SX SFP dibuat untuk Multimode Fiber saja.
1000BASE-SX SFP, kompatibel dengan standar IEEE 802.3z 1000BASE-SX, beroperasi pada tautan serat multimode 50 μm hingga 550 m dan pada 62.Fiber Distributed Data Interface (FDDI) kelas 5 μm serat multimode hingga 220 m. Ini dapat mendukung hingga 1 km melalui kabel serat multimode 50 μm yang dioptimalkan laser. Panjang gelombang 850-nm, rentang suhu operasi yang diperpanjang dan dukungan DOM, konektor LC / PC ganda.
Spesifikasi SFP Port Cabling |
|||||
| Produk | Panjang gelombang (nm) | Jenis Serat | Ukuran inti (μm) | Lebar Band Modal (MHz* Km) *** | Jarak operasi (m) |
| 1000BASE-SX | 850 | MMF | 62.5 | 160 (FDDI-grade) | 220 (722 kaki) |
| 62.5 | 200 (OM1) | 275 (902 kaki) | |||
| 50 | 400 (400/400) | 500 (1,640 kaki) | |||
| 50 | 500 (OM2) | 550 (1.804 kaki) | |||
| 50 | 2000 (OM3) | 1000 (3281 kaki) | |||
| 1000BASE-LX/LH | 1310 | MMF* | 62.5 | 500 | 550 (1.804 kaki) |
| 50 | 400 | 550 (1.804 kaki) | |||
| 50 | 500 | 550 (1.804 kaki) | |||
| SMF | -** | - | 10,000 (32,821 kaki) | ||
| 1000BASE-EX | 1310 | SMF | -** | - | 40,000 (131,234 kaki) |
|
1000BASE-ZX (GLC-ZX-SMD) |
1550 | SMF | - | - | Sekitar 70 km tergantung pada kehilangan link |
| 1000BASE-BX-U | 1310 | SMF | -** | - | 10,000 (32,821 kaki) |
| 1000BASE-BX-D | 1490 | SMF | -** | - | 10,000 (32,821 kaki) |
