Detail produk:
|
| Model: | S5720-52X-PWR-LI-AC | Nama: | S5720-52X-PWR-LI-AC - Switch Seri Huawei S5700 |
|---|---|---|---|
| kata kunci: | saklar ethernet optik dram | detail: | S5720-52X-PWR-LI-AC(48 port Ethernet 10/100/1000,4 10 Gig SFP+,PoE+,370W POE AC 110/220V) |
| Istilah: | switch Huawei Ethernet multi-routing | KILATAN: | 240 MB |
| Ketersediaan: | > 0,99999 | Perlindungan gelombang tinggi di pelabuhan layanan Mode umum: | ± 7 kV |
| Menyoroti: | Huawei Duplex Enterprise Switch,S5720 Huawei Enterprise Switch,Beberapa Perutean Huawei Network Switch |
||

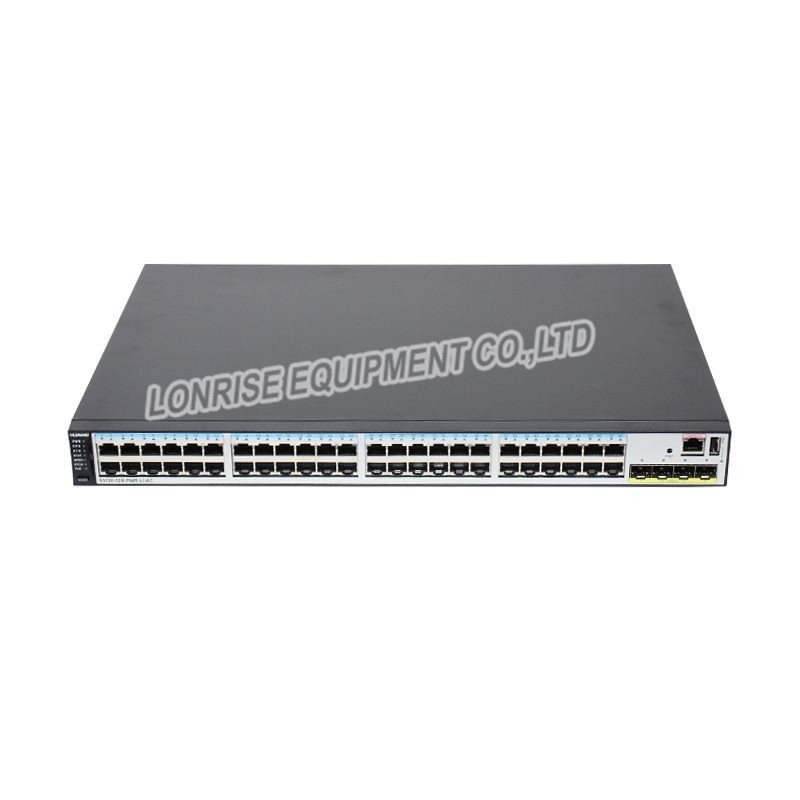

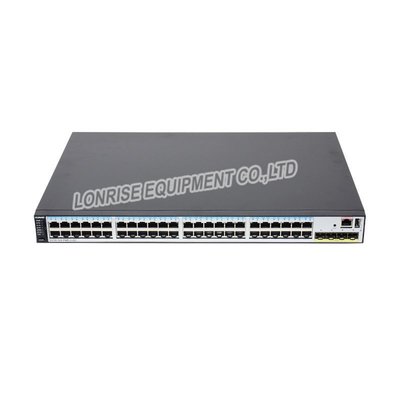

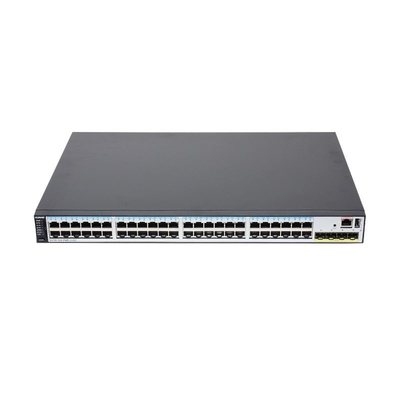

S5720 - 52X - PWR - LI - AC - Huawei S5700 Series Switch duplex Huawei enterprise switch
S5720-52X-PWR-LI-AC - Huawei S5700 Series Switches.S5720-52X-PWR-LI-AC ((48 Ethernet 10/100/1000 port,4 10 Gig SFP+,PoE+,370W POE AC 110/220V)
| Memori (RAM) | 512 MB |
| Flash | 240 MB |
| Waktu rata-rata antara kegagalan (MTBF) | 38 tahun |
| Waktu rata-rata untuk perbaikan (MTTR) | 2 jam |
| Ketersediaan | > 0.99999 |
| Perlindungan terhadap gelombang di pelabuhan layanan | Modus umum: ±7 kV |
| Perlindungan tegangan listrik | ±6 kV dalam mode diferensial, ±6 kV dalam mode umum |
| Dimensi (W x D x H) | 442.0 mm x 310.0 mm x 43.6 mm (17.4 in. x 12.2 in. x 1.72 in.) |
| Berat (termasuk bahan kemasan) | 5.9 kg (13.01 lb) |
| Pelabuhan tumpukan | Empat puluh delapan port 10/100/1000BASE-T dan empat port 10G SFP+ |
| RTC | Tidak didukung |
| RPS | Didukung |
| PoE | Didukung |
| Jangkauan tegangan nominal | 100 V AC hingga 240 V AC, 50/60 Hz |
| Rentang tegangan maksimum | 90 V AC sampai 264 V AC, 47 Hz sampai 63 Hz |
| Konsumsi daya maksimum (100% throughput, kecepatan penuh kipas) |
|
|
Konsumsi daya khas (30% dari beban lalu lintas)
|
42.2 W |
| Suhu penyimpanan | -40°C sampai +70°C (-40°F sampai +158°F) |
| Kebisingan di bawah suhu normal (27°C, daya suara) | kurang dari 48,3 dBA |
| Kelembaban relatif | 5% sampai 95%, tidak kondensasi |
| Ketinggian operasi | 0-5000 m (0-16404 ft) |
