| Model: | AR2220-S | Nama: | Router Seri Huawei AR2200 AR2220-S AR0M022SBA00 |
|---|---|---|---|
| detail: | AR2220-S, 3 Gigabit Ethernet WAN (RJ-45 atau SFP) port, 2 USB, 4 SIC, 2 WSIC, 1 slot DSP | Kata kunci: | Router wifi AR2220-S |
| Penyimpanan: | 2 GB | KILATAN: | 2 GB |
| Slot yang Diperpanjang: | 4 slot SIC dan 2 slot WSIC | Jenis modul daya: | Modul daya yang dapat dicolokkan |
| Menyoroti: | AR2200 Router Gigabit Jaringan Switch,Antarmuka Listrik Jaringan Hub Switch,Huawei Jaringan Internet Switch 2 GB |
||

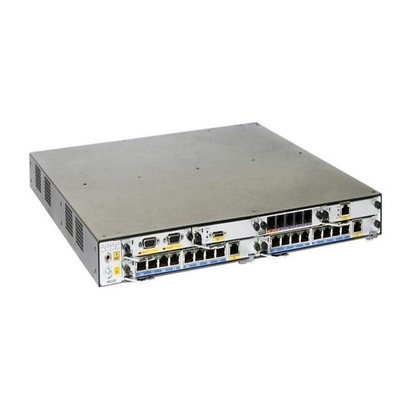

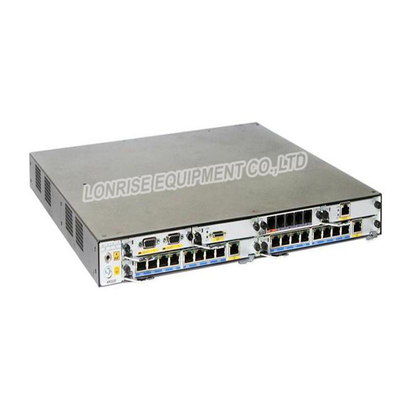

AR2220 - S Huawei AR2200 Series Router AR0M022SBA00 terbaik dalam harga
Huawei AR G3 AR2200 series router AR2220-S is the next-generation enterprise-class routers based on the Huawei proprietary Versatile Routing Platform (VRP) and designs for mid size enterprise or branch office.
| Kode produk | Huawei Router - AR2220-S |
| Memori | 2 GB |
| Flash | 2 GB |
| Layanan antarmuka (konfigurasi standar) |
Antarmuka WAN: 2 antarmuka listrik GE dan 1 antarmuka combo GE Antarmuka LAN: tidak ada |
| Slot yang diperpanjang | 4 slot SIC dan 2 slot WSIC |
| Jenis modul daya | Modul daya yang dapat disisipkan |
| Berat badan | 6 kg (13,2 lb) |
| Dimensi (W x D x H) | 442.0 mm x 420.0 mm x 44.5 mm |
AR2220-SSpesifikasi |
|
| Kecepatan WAN dengan Layanan*** | 400 Mbit/s |
| Kinerja firewall (paket besar) | 1.9 Gbit/s |
| Jumlah pengguna yang direkomendasikan | 300 |
| Pelabuhan WAN tetap | 3 x GE (1 x Combo port) |
| Slot SIC | 4 |
| WSIC Slots (default/max**) | 2/4 |
| XSIC Slots (default/max**) | 0/2 |
| EXSIC Slot (dibagikan dengan slot XSIC) | 0 |
| Slot DSP | 1 |
| Port USB 2.0 | 2 |
| Port USB mini | 1 |
| Pelabuhan konsol | 1 |
| Memori | 2 GB |
| Flash (default/max**) |
2 GB/8 GB |
| Kekuatan Maksimal | 150W |
| Sumber Daya yang berlebihan | - |
| Daya AC | 100V sampai 240V |
| Frekuensi | 50 Hz/60 Hz |
| Daya DC | -48V sampai -60V |
| Dimensi (tinggi x lebar x kedalaman) | 44.5 mm x 442 mm x 420 mm |
| Berat badan | 4.95 kg (tanpa modul daya dan kartu antarmuka) |
| Suhu Lingkungan | 0°C sampai 45°C |
| Kelembaban Relatif | 5% sampai 95% (tidak kondensasi) |
