PRODUCT OVERVIEW

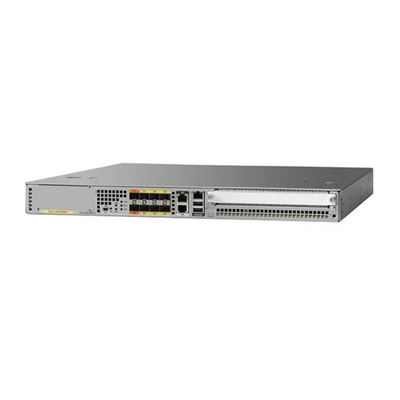

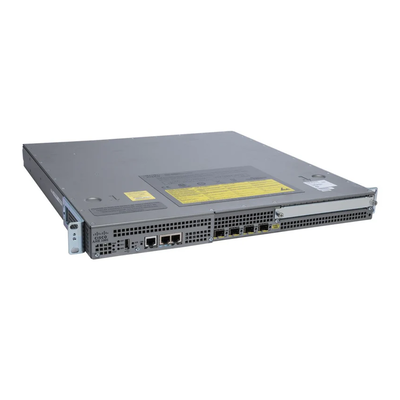

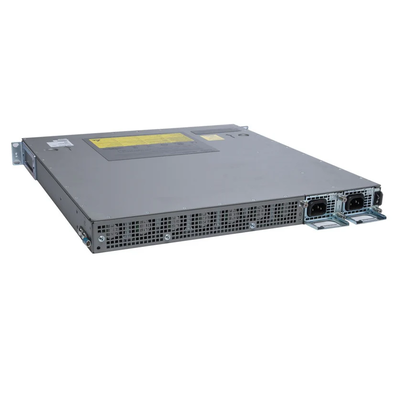

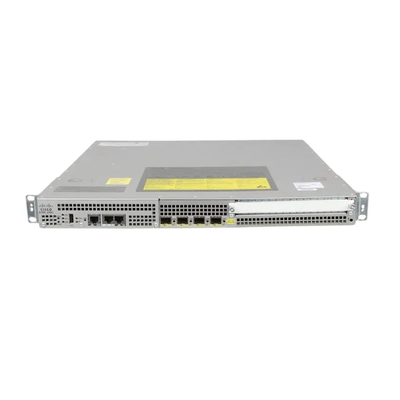

The Cisco ASR1001-X Router is a high-performance member of the Cisco ASR 1000 Series Aggregation Services Routers, designed for enterprise WAN edge, service provider networks, and data center edge deployments.
Built with Cisco’s QuantumFlow Processor architecture, the ASR1001-X delivers high-speed packet forwarding, integrated services, and advanced security functions in a compact 1U form factor.
It features 6 built-in Gigabit SFP ports and 2 dedicated 10G SFP+ ports, making it ideal for organizations requiring scalable uplinks and stable multi-service routing performance.
With throughput scalability up to 20 Gbps, the ASR1001-X supports growing traffic demands while maintaining low latency and high reliability.
KEY FEATURES & BENEFITS
✔ High Performance WAN Routing
- Up to 20 Gbps throughput scalability
- Optimized for BGP full-table routing and ISP peering
✔ Flexible Interface Design
- 6 × 1G SFP ports for access aggregation
- 2 × 10G SFP+ ports for high-speed uplinks
✔ Carrier-Grade Reliability
- Cisco IOS XE operating system
- High availability and software redundancy support
✔ Advanced Service Integration
- Built-in support for VPN, QoS, NAT, MPLS
- Scalable security and encryption processing
✔ Compact Enterprise Design
- 1U rack-mount chassis
- Ideal for space-limited network environments
TECHNICAL PARAMETERS
| Category |
Details |
| Routing Platform |
Cisco ASR 1000 Series |
| Forwarding Engine |
QuantumFlow Processor |
| Throughput |
2.5G–20G scalable |
| Memory |
8GB DDR3 ECC |
| Flash Storage |
8GB onboard |
| Interfaces |
6×SFP + 2×SFP+ |
| USB Ports |
Yes |
| Console Port |
RJ-45 + USB console |
| Operating System |
Cisco IOS XE |
| Redundancy |
Software-based HA |
| Deployment |
Enterprise / ISP edge |
ASR1001-X VS OTHER ROUTERS
ASR1001-X vs ASR1002-X
- ASR1001-X: Compact, cost-effective WAN edge router
- ASR1002-X: Higher scalability, more modular expansion
ASR1001-X vs Cisco Catalyst 9000
- ASR1001-X: Designed for WAN routing & BGP
- Catalyst 9000: Focused on switching & campus LAN
ASR1001-X vs ISR Series
- ASR1001-X: Higher throughput (up to 20 Gbps)
- ISR: Best for SMB / branch office deployments
Conclusion:
ASR1001-X is best for enterprise WAN edge + ISP aggregation scenarios requiring stable BGP and high throughput.
APPLICATION SCENARIOS
- Enterprise WAN aggregation
- ISP edge routing (BGP full table)
- Data center edge routing
- Multi-site VPN hub
- MPLS backbone edge
- High availability network core
WHY CHOOSE ASR1001-X?
- Stable Cisco enterprise-grade platform
- High scalability for growing traffic
- Strong compatibility with SFP/SFP+ optics
- Long lifecycle support
- Widely deployed in ISP and enterprise networks
FAQ
Q1: What is Cisco ASR1001-X used for?
It is used for enterprise WAN edge routing, ISP peering, and high-performance network aggregation, supporting BGP and MPLS environments.
Q2: Does ASR1001-X support 10G uplinks?
Yes. It includes 2 × built-in 10G SFP+ ports, ideal for high-speed backbone connections.
Q3: Is ASR1001-X suitable for BGP full routing table?
Yes. It is widely used in ISP environments for full BGP table routing with stable performance.
Q4: What is the difference between ASR1001-X and ISR routers?
ASR1001-X provides higher throughput (up to 20 Gbps) and is designed for carrier-grade WAN edge, while ISR routers are more suitable for branch offices.
Q5: What warranty do you provide?
We provide 1-year warranty, including replacement support and technical assistance for deployment issues.
Q6: Can it be used in enterprise VPN networks?
Yes. It supports IPSec VPN, MPLS VPN, and secure enterprise connectivity.
AFTER-SALES SERVICE
- 1-Year Warranty Coverage
- 24/7 Technical Support
- Fast Replacement Service
- Global Shipping Available
- Pre-sales configuration support
