SFP-10G-LRM, Cisco SFP Module, 10Gbps, LC Connector, 220m Reach

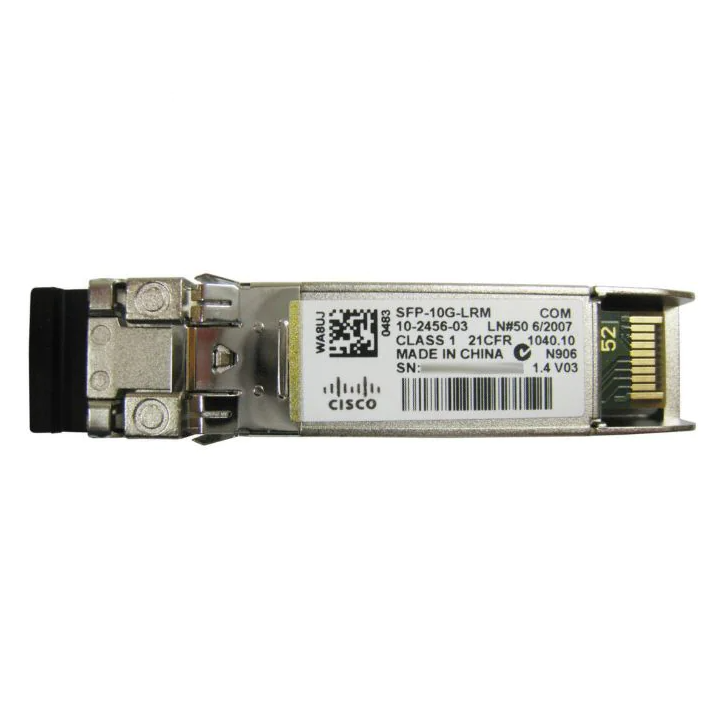

Gambar besar : SFP-10G-LRM, Cisco SFP Module, 10Gbps, LC Connector, 220m Reach

Detail produk:

Tempat asal:	Cina
Nama merek:	CISCO
Sertifikasi:	CE
Nomor model:	SFP-10G-LRM

Kontak

SFP-10G-LRM, Cisco SFP Module, 10Gbps, LC Connector, 220m Reach

Deskripsi

Nama:	SFP 10G SR S	Model:	Kelas Perusahaan Modul 10GBASE SR SFP
Jenis:	10GBASE SR 850nm MMF	Warna Kait Jaminan:	krem
Warrranty:	1 Tahun	PENGIRIMAN:	DHL & FedEx
Jenis Produk:	Modul	Konsumsi Daya (W):	1
Kisaran suhu pengoperasian:	Dengan	Nama Produk:	Modul Cisco SFP
Nomor Bagian:	SFP-10G-LRM	Kondisi:	Baru
Waktu Pimpin:	2~3 hari	Kata kunci:	SFP-10G-LRM

SFP-10G-LRM Overview

The Cisco 10GBASE-LRM Module supports link lengths of 220m on standard Fiber Distributed Data Interface (FDDI) grade Multimode Fiber (MMF). To make sure that specifications are met over FDDI-grade, OM1 and OM2 fibers, the transmitter should be coupled through a mode conditioning patch cord. No mode conditioning patch cord is required for applications over OM3 or OM4.

Quick Specs

Brand	Cisco
Model	SFP-10G-LRM
Wavelength (nm)	SFP+
Cable Type	MMF SMF
Core Size (Microns)	62.5 50.0 50.0 G.652

Types of Multimode Fiber

Naming Convention	Core Size in Microns	Modal Bandwidth at 850 nm (MHz*km)	OFL Modal Bandwidth at 1310 nm (MHz*km)
FDDI-grade	62.5	160	500
OM1	62.5	200	500
OM2	50	500	500
OM3	50	1500	500

Cisco SFP-10G-LRM Specification

SFP-10G-LRM Specifications
Wavelength (nm)	1310
Cable Type	MMF SMF
Core Size (μm)	62.5 50.0 50.0 G.652
Modal Bandwidth (MHz* Km)	500 400 500
Cable Distance	220m 100m 220m 300m
Type	10GBASE-LRM 1310nm MMF and SMF
Transmit Power (dBm)	Maximum: 0.5 Minimum: -6.5
Receive Power (dBm)	Maximum: 0.5 Minimum:-8.4 (in average) and -6.4 (in OMA)***
Transmit and Receive Wavelength Range (nm)	Transmit and Receive Wavelength (nm)
Dimensions (H x W x D)	8.5 x 13.4 x 56.5 mm
Bail Latch Color	Orange
Operating temperature range	Commercial temperature range (COM): 0 to 70°C (32 to 158°F) Extended temperature range (EXT): -5°C to 85°C (23 to 185°F) Industrial temperature range (IND): -40 to 85°C (-40 to 185°F) Storage temperature range: -40 to 85°C (-40 to 185°F)
Power Consumption (W)	1
Temperature Range	COM
DOM	Yes
Warranty	Standard warranty: 5 years Expedited replacement available via a Cisco SMARTnet® Service support contract

SFP-10G-LRM, Cisco SFP Module, 10Gbps, LC Connector, 220m Reach 1

SFP-10G-LRM, Cisco SFP Module, 10Gbps, LC Connector, 220m Reach 2
