Huawei AirEngine 6776-X6ETH Outdoor Wi-Fi 7 AP, IP68, 10 GE Uplink

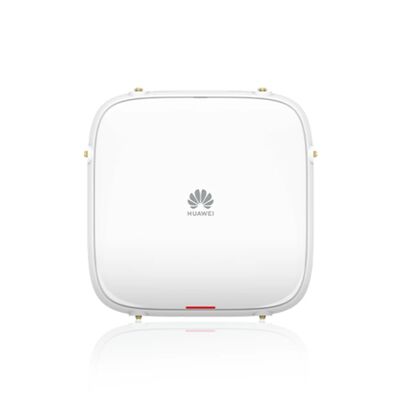

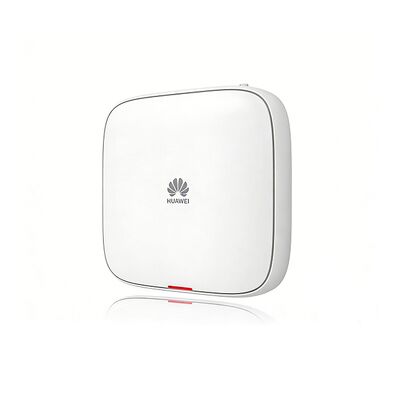

Gambar besar : Huawei AirEngine 6776-X6ETH Outdoor Wi-Fi 7 AP, IP68, 10 GE Uplink

Detail produk:

Tempat asal:	Cina
Nama merek:	HUAWEI
Sertifikasi:	CE
Nomor model:	Mesin Udara6776-X6ETH

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1
Waktu pengiriman:	2-3 hari
Syarat-syarat pembayaran:	T/T

Kontak

Huawei AirEngine 6776-X6ETH Outdoor Wi-Fi 7 AP, IP68, 10 GE Uplink

Deskripsi

Nama Produk:	Titik akses	Nomor Bagian:	Mesin Udara6776-X6ETH
Pembayaran:	T	Pengiriman:	DHL
Kondisi:	Baru	Waktu Pimpin:	2-3 hari
Jaminan:	1 Tahun	Kata kunci:	Mesin Udara6776-X6ETH

AirEngine6776-X6ETH Overview

The AirEngine 6776-X6ETH is a next-generation indoor Wi-Fi 7 (802.11be) AP designed for complex indoor environments - like narrow corridors and high-rise buildings—where you need flexible antenna deployment. It supports tri-band operation with 2.4 GHz (2×2), 5 GHz (4×4), and 6 GHz (2×2) radios, delivering eight spatial streams and up to 7.89 Gbps aggregate device rate. External RP-SMA connectors let you attach specialized antennas for optimized coverage, while dual PoE inputs (5 GE RJ45 + 10 GE SFP+) ensure redundant power and simplified cabling.

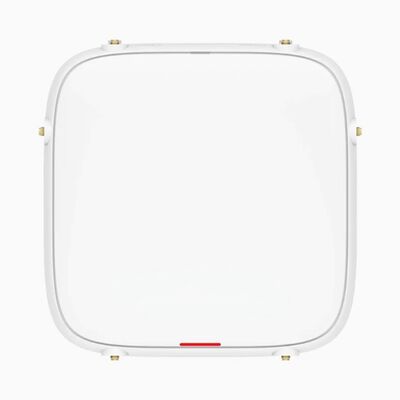

Figure 1 shows the front panel of AirEngine6776-X6ETH.

Recommended Accessories

Accessory	Category	Description
PoE Power Solution	Power	IEEE 802.3bt/at injectors or switches for hybrid-cable power.
Outdoor Antennas	RF	External antenna options for customized coverage.
Mounting Hardware	Installation	Brackets and enclosures for outdoor mounting.

HUAWEI AirEngine6776-X6ETH Specification

Parameter	Specification
Model	Huawei AirEngine 6776‑X6ETH
Wi‑Fi Standard	IEEE 802.11be (Wi‑Fi 7)
Radios	Tri-band: 2.4 GHz, 5 GHz, 6 GHz
Spatial Streams	2×2 (2.4 GHz) + 2×2 (5 GHz) + 4×4 (6 GHz) = 8 streams
Max Throughput	13.66 Gbps
External Antenna Support	Supports flexible, optimized outdoor antennas
Radio Modes	Mode 1: 2.4+5H+5L (7.89 Gbps); Mode 2: 2.4+5+6 (13.66 Gbps)
Uplink Ports	1×10GE Optical (PoE-In), 1×10GE Electrical (PoE-In), 1×GE Electrical (PoE-In)
Power Input Options	PoE-In (IEEE 802.3bt/at); DC 18–60 V (hot backup)
Protection Rating	IP68, –40 °C to +70 °C
Surge Protection	6 kA/6 kV on Ethernet and RF ports
Max Client Density	Up to 1,800 users
BLE Support	BLE for O&M via CloudCampus
Management Modes	Fit, Fat, and Cloud-managed
Dimensions (H × W × D)	85 × 280 × 220 mm
Operating Humidity	0%–100% non-condensing
