S5735-S24P4XE-V2, Huawei S5735 Switch, 24xGE PoE+/4x10GE SFP+

S5735-S24P4XE-V2, Huawei S5735 Switch, 24xGE PoE+/4x10GE SFP+
S5735-S24P4XE-V2, Huawei S5735 Switch, 24xGE PoE+/4x10GE SFP+ S5735-S24P4XE-V2, Huawei S5735 Switch, 24xGE PoE+/4x10GE SFP+

Gambar besar :  S5735-S24P4XE-V2, Huawei S5735 Switch, 24xGE PoE+/4x10GE SFP+

Detail produk:
Tempat asal: Cina
Nama merek: Huawei
Sertifikasi: CE
Nomor model: S5735-S24P4XEZ-V2
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Waktu pengiriman: 2-3 hari
Syarat-syarat pembayaran: T/T
Kontak

S5735-S24P4XE-V2, Huawei S5735 Switch, 24xGE PoE+/4x10GE SFP+

Deskripsi
Nama Produk: Mengalihkan Nomor Bagian: S5735-S24P4XEZ-V2
Pembayaran: TT Pengiriman: DHL
Kondisi: Baru Waktu Pimpin: 2-3 hari
Jaminan: 1 Tahun Kata kunci: S5735-S24P4XEZ-V2
Menyoroti:

Huawei S5735 PoE+ network switch

,

24-port GE PoE+ switch

,

Huawei S5735 with 10GE SFP+

Huawei S5735-S24P4XEZ-V2 Overview

The Huawei S5735-S24P4XE-V2 is a versatile and powerful Layer 3 managed switch designed for enterprise networks. It offers a perfect combination of advanced networking features, robust performance, and high reliability to meet the demanding requirements of modern business environments. With its compact size and energy-efficient design, this switch is an ideal solution for organizations looking to upgrade their network infrastructure with cutting-edge technology.

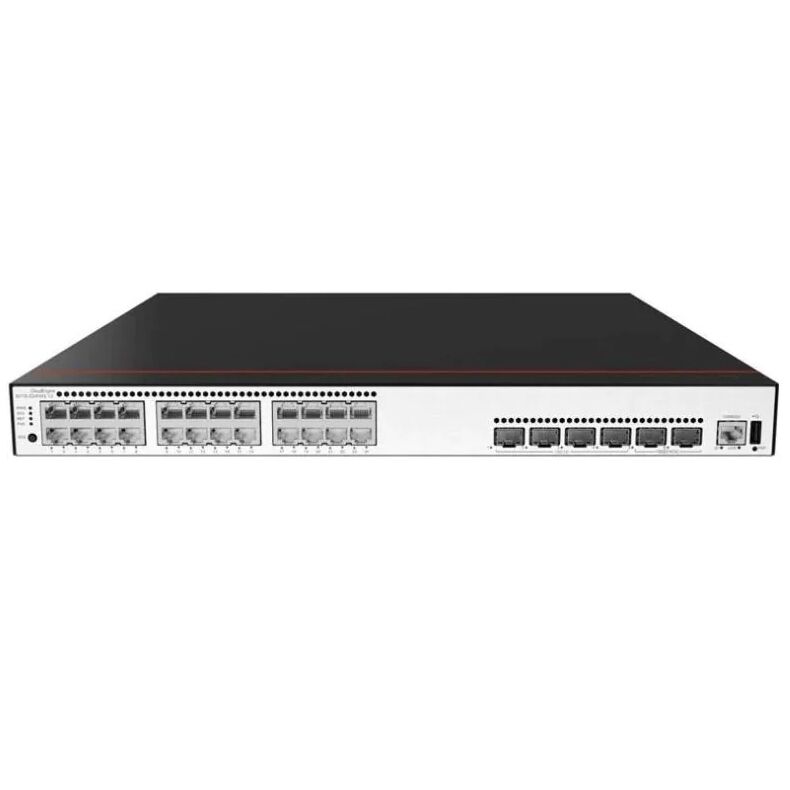

Figure 1 shows the front panel of S5735-S24P4XEZ-V2.
S5735-S24P4XE-V2, Huawei S5735 Switch, 24xGE PoE+/4x10GE SFP+ 0
S5735-S24P4XE-V2, Huawei S5735 Switch, 24xGE PoE+/4x10GE SFP+ 1



Quick Specs
Parameter Data
Brand Huawei
Model S5735-S24P4XE-V2
Port Count 24 Ethernet 10/100/1000 ports, 4 10 Gig SFP+
Switching Capacity 128 Gbps
Forwarding Rate 95.2 Mpps









Supported Options

Accessory Model
Power Supply PWR-350W-AC
Stacking Module STACK-PWR-150CM
SFP+ Transceiver ESFP-10G-LR










Compare to Similar Items

Model Differences
S5730S-28P-PWR-LI-AC Supports PoE power supply, less switching capacity
S5720-56C-PWR-EI-AC Higher port count but lower 10G port density
S5735-L48T4X More Ethernet ports, no built-in 10G ports, requires expansion module









Huawei S5735-S24P4XE-V2 Specification

S5735-S24P4XE-V2 Specifications
Brand Huawei
Product Name S5735-S24P4XE-V2
Type Fixed Port Access Switch
Switching Capacity 128 Gbps
Forwarding Rate 95.23 Mpps
Fixed Ports 24x 10/100/1000Base-T Ethernet ports, 4x 10GE SFP+
MAC Address Table 16K
RAM 512 MB
Flash Memory 512 MB
Packet Buffer 1.5 MB
Input Voltage AC: 100V~240V, DC: 48V~60V
Power Consumption Operational: < 30W
Dimensions (W x D x H) 442 mm x 220 mm x 43.6 mm
Form Factor 1U, Rack Mountable
Jumbo Frame Supports up to 9216 bytes frame size
VLAN Features 4K VLANs, MAC VLAN, Protocol VLAN, VLAN Mapping
QoS (Quality of Service) SP, WRR, DRR, SP+WRR, Congestion avoidance and congestion management
Security ACLs, Secure Shell (SSH), Secure Sockets Layer (SSL), IEEE 802.1X, RADIUS, and TACACS+
Management Console, Telnet, SNMP v1/v2c/v3, sFlow, RMON, Web-based GUI, USB port for storage and log management
Reliability Primary/secondary power supply system, VRRP, RRPP, BFD
Operating Temperature 0°C to 50°C

S5735-S24P4XE-V2, Huawei S5735 Switch, 24xGE PoE+/4x10GE SFP+ 2
S5735-S24P4XE-V2, Huawei S5735 Switch, 24xGE PoE+/4x10GE SFP+ 3
