WSP-Q40GLR4L 40GBASE-LR4 QSFP transceiver module for SMF, duplex LC connector, up to 2km

WSP-Q40GLR4L 40GBASE-LR4 QSFP transceiver module for SMF, duplex LC connector, up to 2km
WSP-Q40GLR4L 40GBASE-LR4 QSFP transceiver module for SMF, duplex LC connector, up to 2km
WSP-Q40GLR4L 40GBASE-LR4 QSFP transceiver module for SMF, duplex LC connector, up to 2km WSP-Q40GLR4L 40GBASE-LR4 QSFP transceiver module for SMF, duplex LC connector, up to 2km WSP-Q40GLR4L 40GBASE-LR4 QSFP transceiver module for SMF, duplex LC connector, up to 2km WSP-Q40GLR4L 40GBASE-LR4 QSFP transceiver module for SMF, duplex LC connector, up to 2km WSP-Q40GLR4L 40GBASE-LR4 QSFP transceiver module for SMF, duplex LC connector, up to 2km WSP-Q40GLR4L 40GBASE-LR4 QSFP transceiver module for SMF, duplex LC connector, up to 2km WSP-Q40GLR4L 40GBASE-LR4 QSFP transceiver module for SMF, duplex LC connector, up to 2km

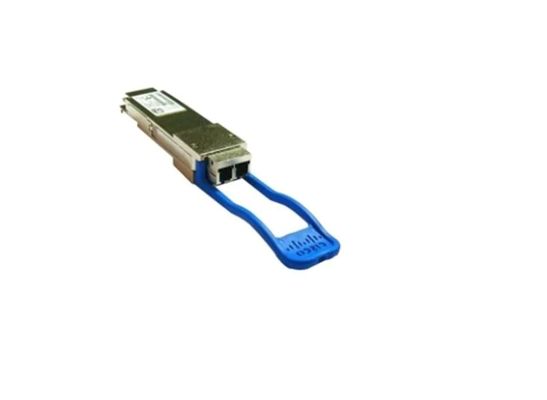

Gambar besar :  WSP-Q40GLR4L 40GBASE-LR4 QSFP transceiver module for SMF, duplex LC connector, up to 2km

Detail produk:
Tempat asal: Amerika Serikat
Nama merek: Cisco
Sertifikasi: CE
Nomor model: WSP-Q40GLR4L
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Harga: $200-$235
Waktu pengiriman: 1-2 hari
Syarat-syarat pembayaran: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Menyediakan kemampuan: 500 per minggu
Kontak

WSP-Q40GLR4L 40GBASE-LR4 QSFP transceiver module for SMF, duplex LC connector, up to 2km

Deskripsi
Kondisi: Asli baru Model: WSP-Q40GLR4L
Konektor: Duplex LC Jarak maksimum: 2 km
Jenis kabel: Smf Jarak Kabel: 2 km
Merek: Cisco Ukuran Inti (Mikron): 50.0

WSP-Q40GLR4L Overview



The Cisco WSP-Q40GLR4L is a high-performance 40GBASE-LR4 QSFP transceiver module designed for single-mode fiber (SMF) applications. Featuring a duplex LC connector, it supports data transmission over distances of up to 2 kilometers. This transceiver is ideal for high-speed network infrastructures that require reliable and efficient connectivity solutions.

Quick Spec

Brand Cisco
Model WSP-Q40GLR4L
Connector Duplex LC
Maximum Distance 2km
Form Factor QSFP+

Product Features

  • ● 40GBASE-LR4 standard compliance for robust performance
  • ● Supports single-mode fiber (SMF) with a duplex LC connector
  • ● Transmission reach of up to 2 kilometers
  • ● High-density QSFP+ form factor
  • ● Low power consumption for energy-efficient networking

Product Applications

  • ● Data Center Interconnects
  • ● Enterprise Core Networks
  • ● High-Performance Computing (HPC) Clusters

Supported Options

Accessory Model
QSFP+ to 4xSFP+ Breakout Cable QSA-Module
QSFP+ DAC Cables Cisco QSFP-H40G-CU1M
QSFP+ Fiber Optic Cables Cisco QSFP-4X10G-LR

Compare to Similar Items

Model Differences
Cisco QSFP-40GE-LR4 Supports longer distances up to 10km
Cisco QSFP-40G-SR-BD Uses BiDi technology for multimode fiber
Cisco QSFP-40G-SR4 For short range up to 150m on OM3 MMF





WSP-Q40GLR4L Specification

WSP-Q40GLR4L Specifications
Wavelength (nm) 1310
Cable type SMF
Core size (Microns) G.652
Modal bandwidth (MHz km) -
Cable distance 2km
Power consumption (W) 3.5
Pull tab color Yellow
Type 40GBASE-LR4-Lite, 1310 nm, SMF
Transmit power (dBm) Maximum: 2.3, per lane
Minimum: -10, per lane
Receive power (dBm) Maximum: 2.3, per lane
Minimum: -13.7, per lane
Transmit and receive wavelength (nm) Four lanes: 1271, 1291, 1311, 1331
Environmental conditions

Operating temperature range:

● Commercial temperature range: 0 to 70°C (32 to 158°F). Exceptions are

◦ QSFP BiDi (QSFP-40G-SR-BD): +10 to 70°C (50 to 158°F)

◦ QSFP BiDi Monitor (QSFP-40G-BD-RX): +10 to 70°C (50 to 158°F)

◦ QSFP LR4 Lite (WSP-Q40GLR4L): +10 to 60°C (50 to 140°F)

● Storage temperature range: -40 to 85°C (-40 to 185°F)


WSP-Q40GLR4L 40GBASE-LR4 QSFP transceiver module for SMF, duplex LC connector, up to 2km 6
WSP-Q40GLR4L 40GBASE-LR4 QSFP transceiver module for SMF, duplex LC connector, up to 2km 7



WSP-Q40GLR4L 40GBASE-LR4 QSFP transceiver module for SMF, duplex LC connector, up to 2km 8

WSP-Q40GLR4L 40GBASE-LR4 QSFP transceiver module for SMF, duplex LC connector, up to 2km 9

WSP-Q40GLR4L 40GBASE-LR4 QSFP transceiver module for SMF, duplex LC connector, up to 2km 10

WSP-Q40GLR4L 40GBASE-LR4 QSFP transceiver module for SMF, duplex LC connector, up to 2km 11
