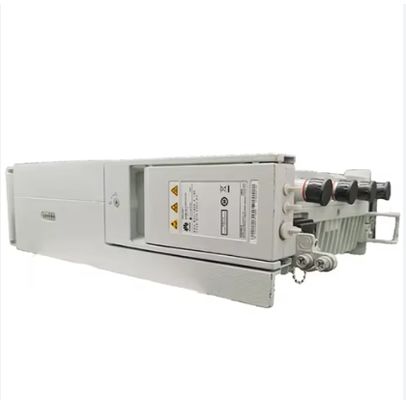

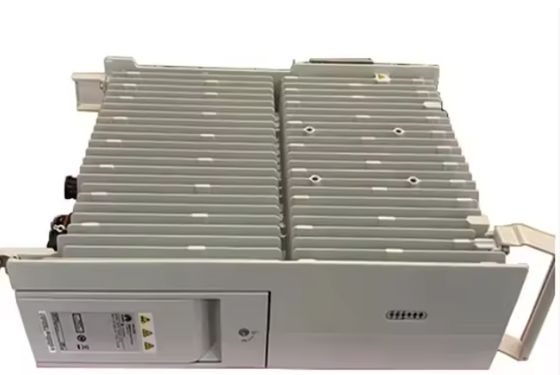

RRU5258/QFS A Remote Radio Unit

Gambar besar : RRU5258/QFS A Remote Radio Unit

Detail produk:

Tempat asal:	CINA
Nama merek:	Huawei
Sertifikasi:	CE
Nomor model:	5258/QFS
Dokumen:	LONRISE EQUIPMENT Company ...le.pdf

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 pc
Waktu pengiriman:	1-3 hari
Syarat-syarat pembayaran:	T/T, Western Union

Kontak

RRU5258/QFS A Remote Radio Unit

Deskripsi

Merek:	Huawei	Model:	RRU5258/QFS
Kondisi:	Tangan kedua	Jaminan:	3 bulan
Waktu tunggu:	1-3 hari	Asal:	CINA
Moq:	1 pc	Jenis:	RRU

Overview

RRU5258 is a Remote Radio Unit (RRU) series by Huawei.
The “QFS” suffix (as in “RRU5258-02312QFS”) appears to be a specific part / board / module variant (e.g. “02312QFS”) used for certain frequency bands (e.g. 2600 MHz) in LTE TDD / 8T8R configuration.

Key Specifications (for 2600 MHz / QFS variant)

Below are representative specs for RRU5258 02312QFS (Band 38, LTE TDD) as found in public listings / documents.

Parameter	Value / Description
Frequency band / RAT	LTE TDD, typically 2600 MHz (Band 38)
Number of carriers	2 carriers
Antenna ports	8T8R (8 transmit / 8 receive)
Output power per TX	30 W per TX channel (i.e. “8 × 30 W”)
Intermediate / Instantaneous Bandwidth (IBW)	40 MHz
Supply voltage	–48 V DC
Physical / mechanical	Dimensions and weight follow base RRU5258 specs (for 2600 MHz) — ~480 × 356 × 140 mm, ~25 kg (excluding mounts)
Power consumption	For the 2600 MHz version, typical power consumption around 532 W under ~50% load
Environmental / tolerance	Operating temperature: –40 °C to +55 °C (without solar irradiation) With solar irradiation: up to +50 °C Humidity: 5% to 100% RH Ingress protection: IP65
CPRI / fronthaul ports	2 CPRI ports; port rates include 24.33024, 10.1376, 9.8304, 4.9152 Gbps etc. Cascading: up to 2 levels in NR TDD mode; max fiber distance ~10 km between RRU and BBU (or between cascaded RRUs), cumulative distance constraint ~20 km in some modes
