RRU5301/PFF A Model Of Huawei Remote Radio Unit Specifically A Huawei ELTE RRU5301 For 2600MHz With A 4x40W Power Output

Gambar besar : RRU5301/PFF A Model Of Huawei Remote Radio Unit Specifically A Huawei ELTE RRU5301 For 2600MHz With A 4x40W Power Output

Detail produk:

Tempat asal:	CINA
Nama merek:	Huawei
Sertifikasi:	CE
Nomor model:	5301/pff
Dokumen:	LONRISE EQUIPMENT Company ...le.pdf

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 pc
Waktu pengiriman:	1-3 hari
Syarat-syarat pembayaran:	T/T, Western Union

Kontak

RRU5301/PFF A Model Of Huawei Remote Radio Unit Specifically A Huawei ELTE RRU5301 For 2600MHz With A 4x40W Power Output

Deskripsi

Merek:	Huawei	Model:	5301/pff
Kondisi:	Tangan kedua	Penggunaan:	Stasiun Pangkalan
Jenis:	RRU	Jaminan:	3 bulan
Waktu tunggu:	1-3 hari	Asal:	CINA
Menyoroti:	2600MHz Remote Radio Unit , 4x40W RRU , 3 Months Warranty Huawei RRU5301

Overview

The RRU5301 is a multimode remote radio unit. With the software-defined radio (SDR) technology, the RRU5301 can work in multiple modes through software configuration. It indicated by the "02311PFF" part number, which is a Huawei standard. The PFF designation specifies the unit supports Remote Electrical Tilt (RET) antennas and provides a 12V, 2.3A feeding voltage to them.

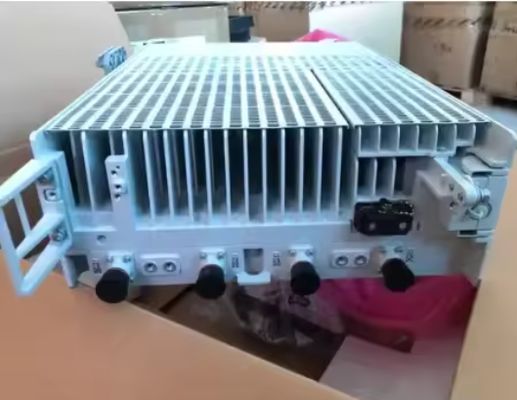

RRU5301/PFF A Model Of Huawei Remote Radio Unit Specifically A Huawei ELTE RRU5301 For 2600MHz With A 4x40W Power Output 0

Key Specifications of the RRU5301/PFF (specifically, the Huawei eLTE RRU5301 for 2600MHz):

Model: RRU5301
Part Number: 02311PFF
Technology: LTE FDD, eLTE
Power: 4x40W
Frequency Band: 2600 MHz
Antenna Interface: Supports RET antennas, providing 12V @ 2.3A feeding voltage to them.
Dimensions (H x W x D): 400 mm x 300 mm x 150 mm (without housing).
Weight: 22 kg (without housing).

General Functions of a RRU5301:

Receives downlink baseband data from the Baseband Unit (BBU).
Sends uplink baseband data to the BBU.
Up-converts RF signals to the transmit (TX) band.
Filters RX and TX signals, allowing them to share the same antenna channel.

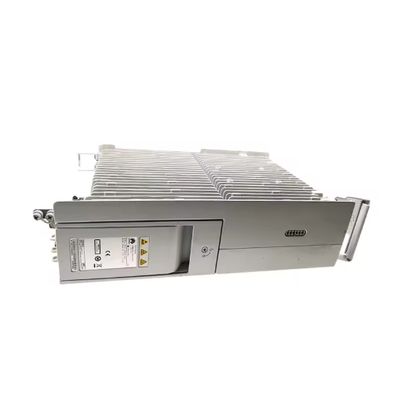

RRU5301/PFF A Model Of Huawei Remote Radio Unit Specifically A Huawei ELTE RRU5301 For 2600MHz With A 4x40W Power Output 2
