Detail produk:
|
| nama: | WS C2960X 24TS L | Model: | Sakelar WS C2960X 24TS L Catalyst 2960 X |
|---|---|---|---|
| Jenis Kandang: | Dapat dipasang di rak - 1U | Set Fitur: | Basis LAN |
| Garansi: | 1 tahun | Pengangkutan: | DHL dan FedEx |
| Antarmuka uplink: | 4x1G SFP | Bandwidth tumpukan: | 80g |
| Pembayaran: | TT/Paypal | ||
| Menyoroti: | WS C2960X 24TS L,Kampus WS C2960X 24TS L,Kelas Enterprise WS C2960X 24TS L |
||
Cisco catalyst 2960X-24TS-L LAN Base Layer 2 stackable switch provides enterprise-class access for campus and branch applications.

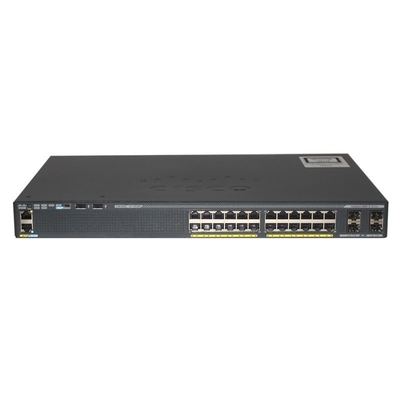

Figure 1 shows the front view of the Cisco 2960X-24TS-L switch.
Table 1 shows the Quick Spec of the Cisco 2960X-24TS-L switch.
| Product Code | WS-C2960X-24TS-L |
| Enclosure Type | Rack-mountable - 1U |
| Feature Set | LAN Base |
| Uplink Interfaces | 4 x 1G SFP |
| Ports | 24 x Ethernet 10/100/1000 Gigabit ports |
| Maximum stacking number | 8 |
| Stack bandwidth | 80G |
| Forwarding Bandwidth | 108Gbps |
| Switching Bandwidth | 216Gbps |
| RAM | 512MB |
| Flash Memory | 128MB |
| Dimensions | 44.5 cm x 27.9 cm x 4.5 cm |
| Package Weight | 9.19 Kg |
Figure 2 shows the front panel of the Cisco 2960X-24TS-L switch.
Note:
① Ethernet management port ② Mode button ③ Switch LEDs ④ USB mini-Type B (console) port ⑤ USB Type A ports
⑥ 24*10/100/1000 ports ⑦ SFP module ports ⑧ CONSOLE LED ⑨ MGMT LED ⑩ RJ-45 console port
·The Switch LEDs include SYST, STAT, SPEED, RPS, MAST, and STACK LEDs.
Figure 3 shows the back panel of the Cisco 2960X-24TS-L switch.
Note:
① FlexStack-Plus module slot and cover ② Fan Exhaust ③ RPS Connector ④ AC power connector
