Detail produk:
|
| name: | S5735-L24T4X-A | model: | Huawei SFP FE SX MM1310 Optical Transceiver |
|---|---|---|---|
| Product Code: | SFP FE SX MM1310 | Center wavelength (nm): | 1310 |
| Warrranty: | 1 year | shipping: | DHL&FeDex |
| ports: | 4 x 10 GE SFP+ | Connector type: | LC |
| Extinction ratio (dB): | 10 | Net Dimension(D x W x H mm): | 145 x 80 x 35 |
| Menyoroti: | 100M SFP FE SX MM1310,Multi mode SFP FE SX MM1310,155M SFP FE SX MM1310 |
||

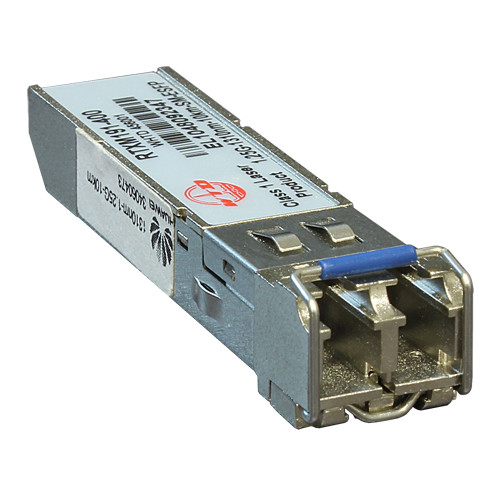

Gambar 1. SFP-FE-SX-MM1310 dapat dipasang di slot SFP switch.
Tabel 2 menunjukkan saklar panas Huawei yang mendukung SFP-FE-SX-MM1310.
| Model | Deskripsi |
| S2700-26TP-EI-DC | 24 x Ethernet 10/100 port, 2 dual-purpose 10/100/1000 atau SFP, DC -48V |
| S2700-52P-EI-AC | 48 x Ethernet 10/100 port, 4 Gig SFP, AC 110/220V |
| S2700-26TP-EI-AC | 4 x Ethernet 10/100 port, 2 dual-purpose 10/100/1000 atau SFP, AC 110/220V |
| S2700-9TP-PWR-EI | 8 x Ethernet 10/100 port, PoE+, 1 dual-purpose 10/100/1000 atau SFP, AC 110/220V |
| S2700-26TP-PWR-EI | 24 x Ethernet 10/100 port, 2 dual-purpose 10/100/1000 atau SFP, PoE+, tanpa power module |
| S2700-9TP-EI-AC | 8 x Ethernet 10/100 port, 1 dual-purpose 10/100/1000 atau SFP, AC 110/220V |
| S3700-28TP-EI-AC | 24 x Ethernet 10/100 port, 2 Gig SFP dan 2 dual-purpose 10/100/1000 atau SFP, AC 110/220V |
| S3700-28TP-SI-AC | 24 x Ethernet 10/100 port, 2 Gig SFP dan 2 dual-purpose 10/100/1000 atau SFP, AC 110/220V |
| S3700-28TP-PWR-SI | 24 x Ethernet 10/100 PoE+ port,2 Gig SFP dan 2 dual-purpose 10/100/1000 atau SFP,dengan 500W AC power supply |
Tabel 3 menunjukkan perbandingan SFP-FE-SX-MM1310 dan eSFP-FE-LX-SM1310.
| Artikel | SFP-FE-SX-MM1310 | eSFP-FE-LX-SM1310 |
| Faktor bentuk transceiver | SFP | eSFP |
| Kecepatan transmisi | Ethernet Cepat | 100 Mbit/s |
| Panjang gelombang pusat (nm) | 1310 | 1310 |
| Kepatuhan standar | 100base-FX | 100base-LX |
| Jenis konektor | LC | LC |
|
Kabel yang berlaku dan maksimum jarak transmisi |
Serat multimode (50 μm atau 62,5 μm diameter): 2 km | Serat mode tunggal: 15 km |
| Kekuatan transmisi (dBm) | -19.0 sampai -14.0 | -15.0 sampai -8.0 |
| Sensitivitas maksimum penerima (dBm) | - 30 tahun.0 | -31.0 |
| Kekuatan overload (dBm) | - 14.0 | - Delapan.0 |
| Rasio kepunahan (dB) | 10 | 8.2 |
| Suhu operasi | 0°C sampai 70°C (32°F sampai 158°F) | 0°C sampai 70°C (32°F sampai 158°F) |
| Dimensi bersih ((D x W x H mm) | 145 x 80 x 35 | 110 x 75 x 40 |
